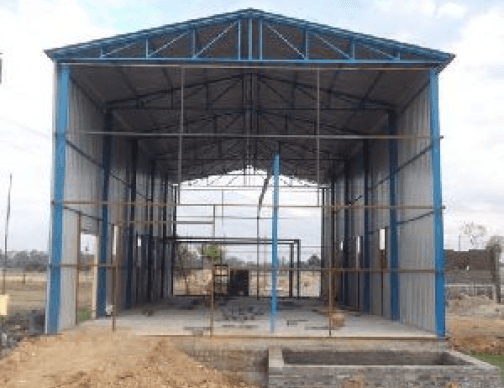

Shed Fabrication
Paver Tiles
Modular Kitchen
RCC Side Walls
Projects
(Ongoing)
FLATS AVAILABLE WITH BANK LOAN FACILITIES. ONLY FEW FLATS REMAINING
1 BHK ( 600 Sq.ft ) Rs 23 Lakhs only
2 BHK ( 1000 Sq.ft ) Rs 43 Lakhs only
3 BHK ( 1200 Sq.ft ) Rs 48 Lakhs only
Instead of using brick walls, if we use RCC Concrete walls, 20% carpet area is additionally available and also 20% income
Why RCC Side walls ?
We are executing Multi-storied Framed Structure buildings with RCC Columns and casting 6 cm thick RCC side walls using 8 mm TMT/CTD welded bars 9” c/c gaps.
In a 1000 sq.ft super plinth area building, approx. 225 running foot walls are there. Normally, 23 cm brick/block walls occupying [225’ x 10.5” ~= 200 sq.ft] 210 sq.ft and carpet area approx. 790 sq.ft available. If we do with 6 cm RCC side walls only 45 sq.ft area occupying wall thickness and remaining 955 sq.ft carpet area available for usage.
Almost, in all city limit, the plot land market value is Rs. 2500 - 15,000 per sq.ft. We can gain 20% extra carpet area adapting 6 cm RCC walls.
The RCC walls are 200% stronger and very safer in earthquake times and only 10% costlier than brick or block walls.

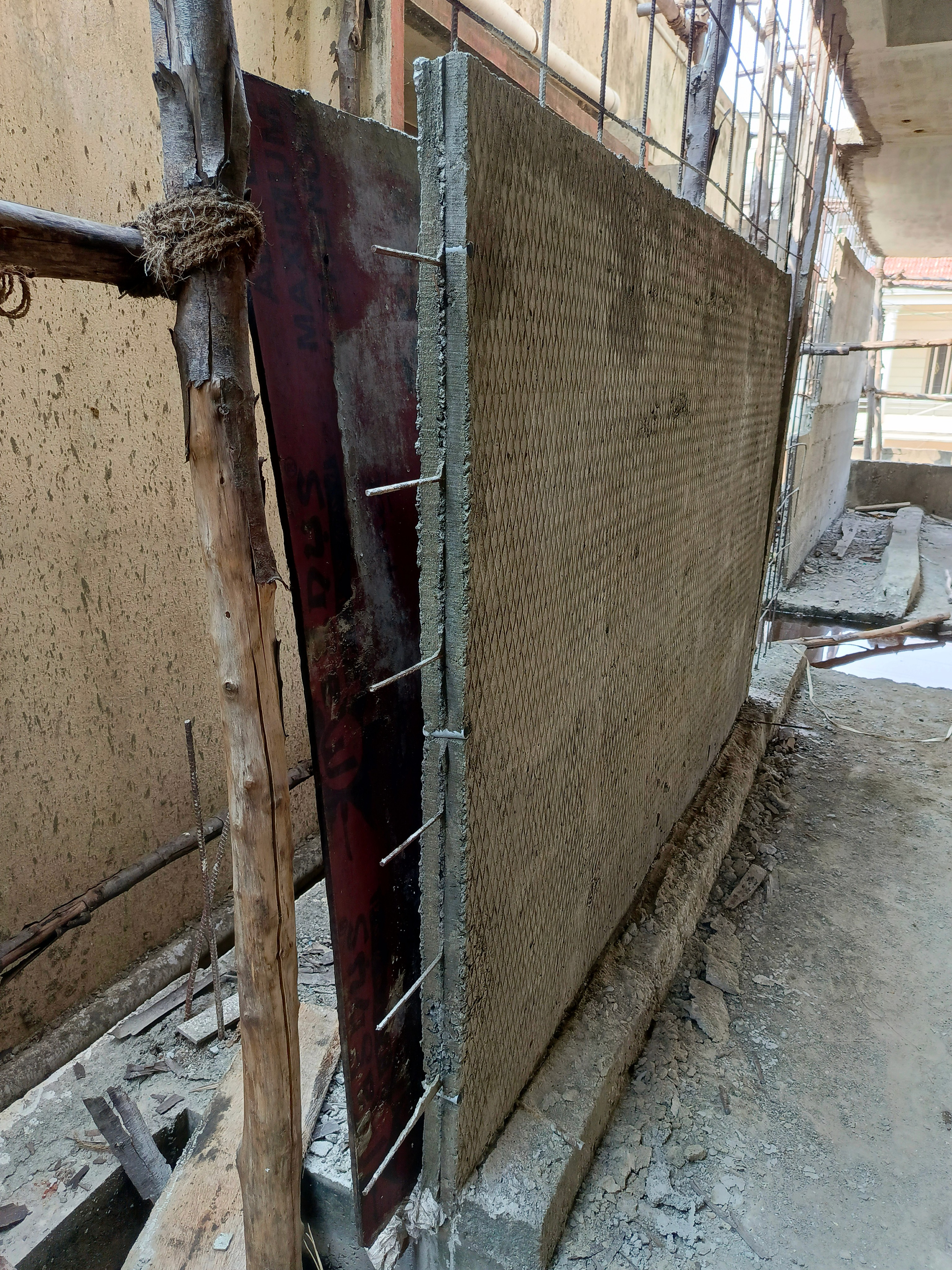

6 cm
thickness
About Us
We are one of the ISO 9001 certified and approved SSI/MSME unit and Class I Civil Engineering contractors with State Govt. and Central Govt. Departments for the past 37 years working for P.W.D, C.P.W.D, Highways, DRDA, Municipal Corporations, SBI, etc.
Our Factory is located at S-6, SIDCO Industrial estate, N.K. Road, Opp. to Uzhavar Santhai, Thanjavur 613006. We have skilled and experienced Technicians / Man power and Modern Equipments to complete the work as per specifications within the stipulated period.
Gallery
6 cm
thickness

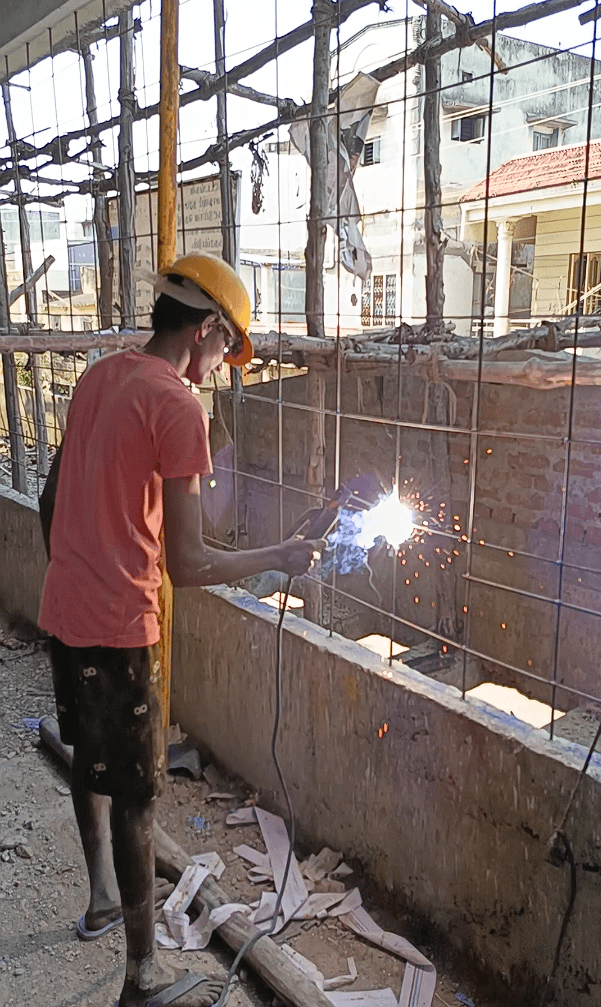

Required Sidewall base preparation using 8 mm CTD/RTS bar
welded 9” c/c

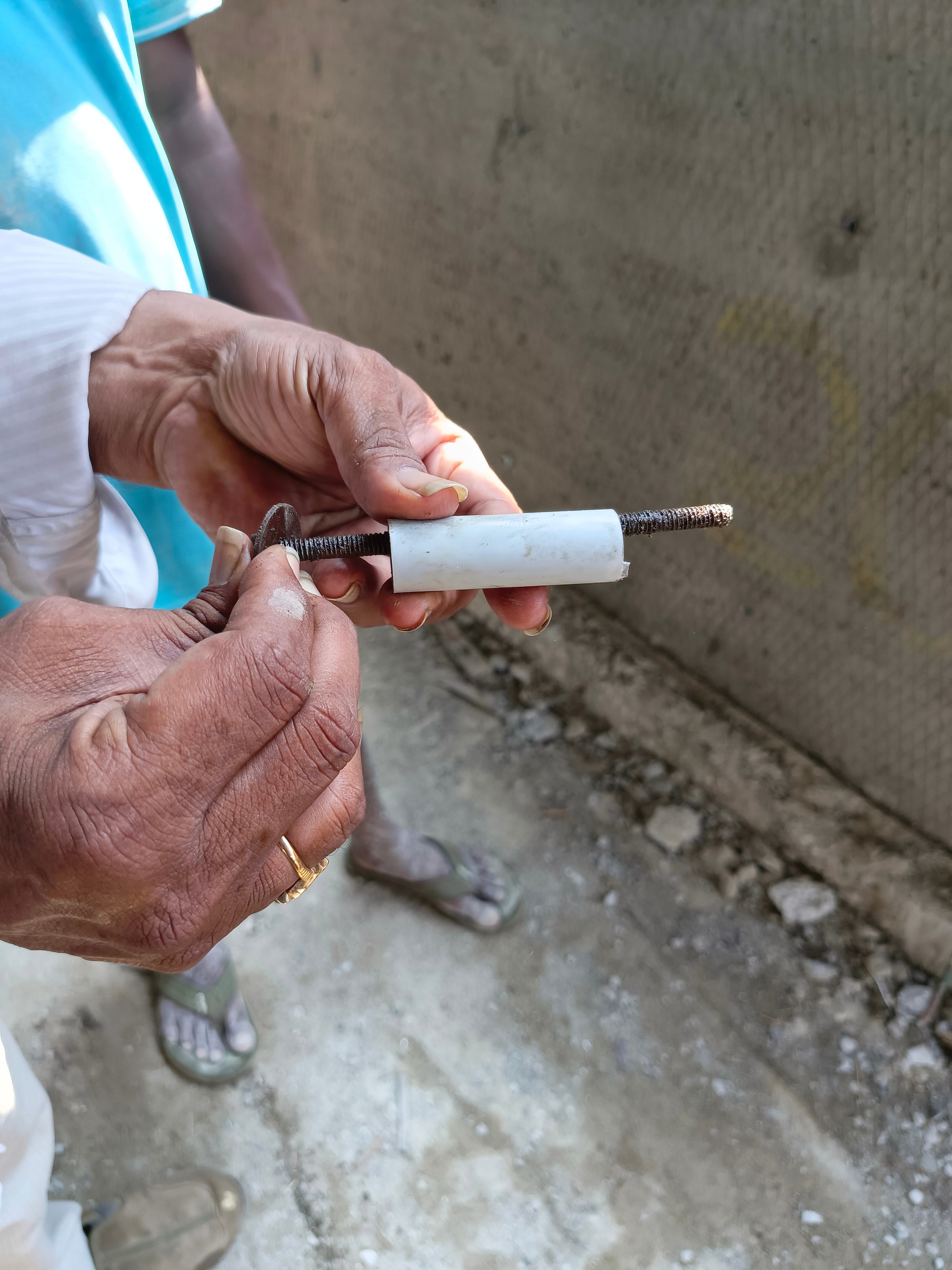

6 cm 3/4 “ PVC pipe for fixing in between the both side centering plywoods using
6 mm x 125 mm M.S. bolt/nut

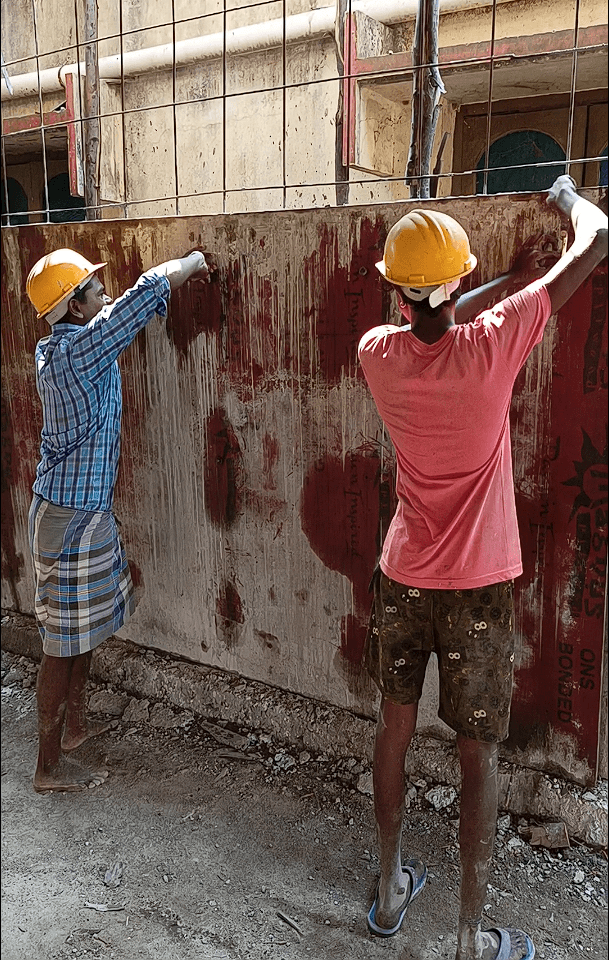

Fitting both side centering plywood boards with spanner

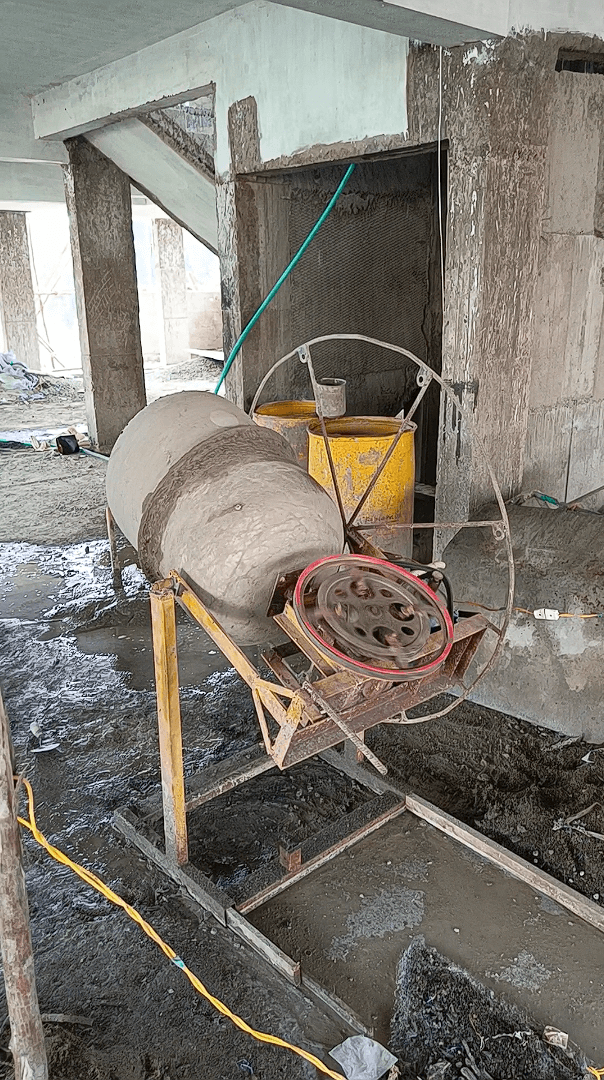

Concrete Mixing 1:3:6 in small electrical operated mixer machine using 12 mm Aggregate with 43 grade OPC

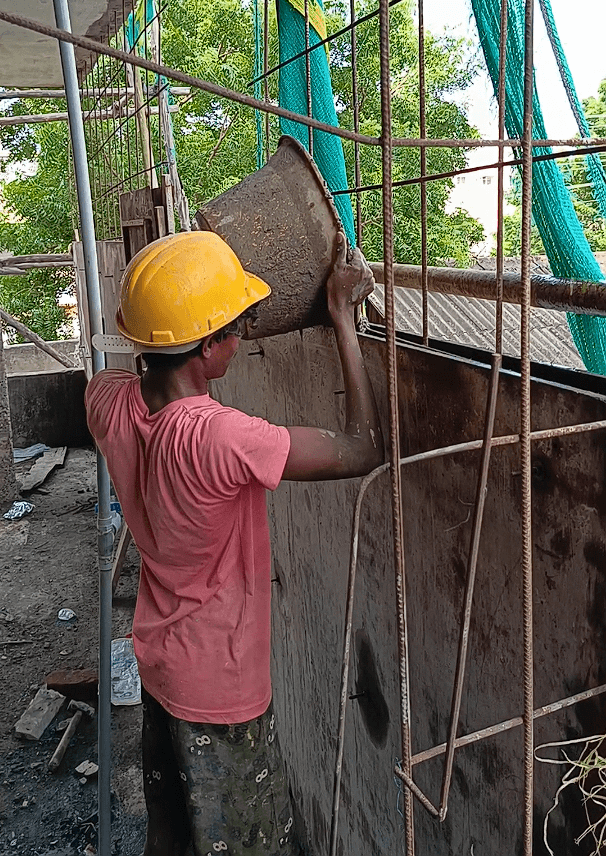

Concrete pouring in between the centering plywoods

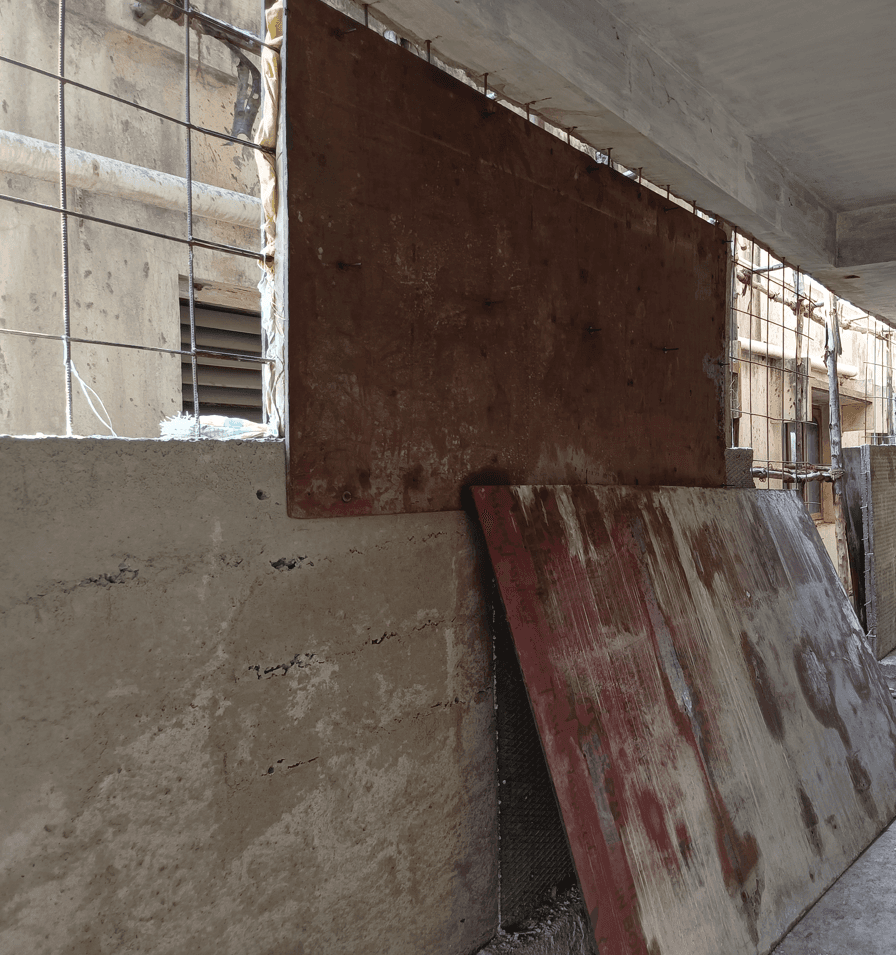

After 12 hours, both sides boards removed
